ESP8266-button PCB

The PCB schematics and layout of the ESP8266-button made with KiCad.

Board render

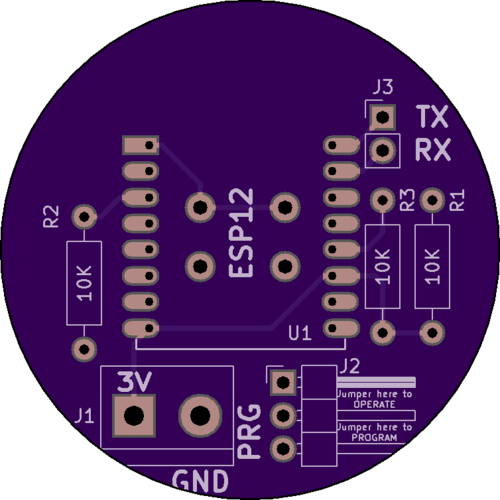

Top

PCB top render

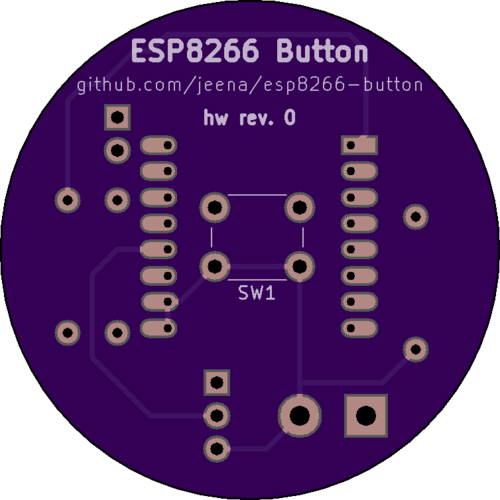

Bottom

PCB bottom render

Components

  • ESP12 WiFi module
  • 3 x 10KΩ resistors
  • Screw terminal (5.08mm)
  • Tactile on/off switch (6x6mm)
  • 3-pin male angled header
  • 2-pin male or female straight header
  • Pin jumper (2.54mm pitch)
